The two-weight structure is the feature that makes it readable. Minor lines are drawn at 0.55 times the base line width and majors at 1.35 — a ratio of about 2.45 to 1.

That ratio is chosen for a specific reason. Too small a difference and you have to count minor lines to find the major, which defeats the purpose. Too large and the minors disappear at low opacity, leaving a coarse grid with nothing between the lines. Somewhere around two and a half to one is where both remain legible and distinct.

The major interval — how many minors between majors — is set separately, from one to ten. The default of five with a 10 mm spacing gives a major every 50 mm, which is the standard engineering drawing setup and the one most people can read without thinking.

The fixed measurement overlay page covers the conventions, beside the rest of the artist guide category. Ten minors between majors gives a decimal structure — every tenth line heavier — which suits work where the arithmetic is decimal. That is the standard on metric graph paper, where a 1 mm grid with a heavier line every 10 mm is close to universal.

For inch work the natural interval is different. A quarter-inch spacing with a major every four gives a heavier line each inch, which is how imperial graph paper has been printed for a century.

The labels are what turn the grid from a visual aid into a measuring instrument. Each major line carries its distance from the origin along the top and left edges, so a position can be stated rather than pointed at.

That distinction matters as soon as more than one person is involved. "Thirty-five millimetres from the left" is a shared fact; "about here" is not, and the whole reason technical drawing developed dimensioning conventions is that pointing does not survive being sent somewhere.

The unit choice is the least glamorous and most consequential setting. Work in the unit your measuring instrument reads. Mixed units — a drawing dimensioned in inches marked out with a metric rule — is the classic source of an error discovered after the cut, and it is entirely preventable.

The unit conversion is exact rather than approximate: an inch is defined as exactly 25.4 millimetres by international agreement since 1959, so switching units here changes the label without changing the geometry by a rounding error.

The most common practical use is recovering dimensions from an image. A scan of a drawing, a photographed plan, a screenshot from a planning portal: in all of them the dimensions exist in the image and are not stated anywhere. Laying a measuring grid over one and scaling it to a known feature makes everything else readable.

The critical caveat there is perspective. A photograph taken at an angle compresses one side, so a grid fitted to the near edge will not fit the far one. For dimension recovery, either scan flat, or photograph from directly overhead with the subject flat, or accept that you are estimating.

A second common use is checking a print. Print a test sheet with a known grid spacing, measure it with a ruler, and you will discover whether your printer is scaling — many print at 96% or 98% by default under a fit-to-page setting, which silently ruins any drawing meant to be dimensionally correct.

That check takes thirty seconds and it is worth doing on any printer before the first job that depends on scale. The failure is invisible on screen and permanent on paper.

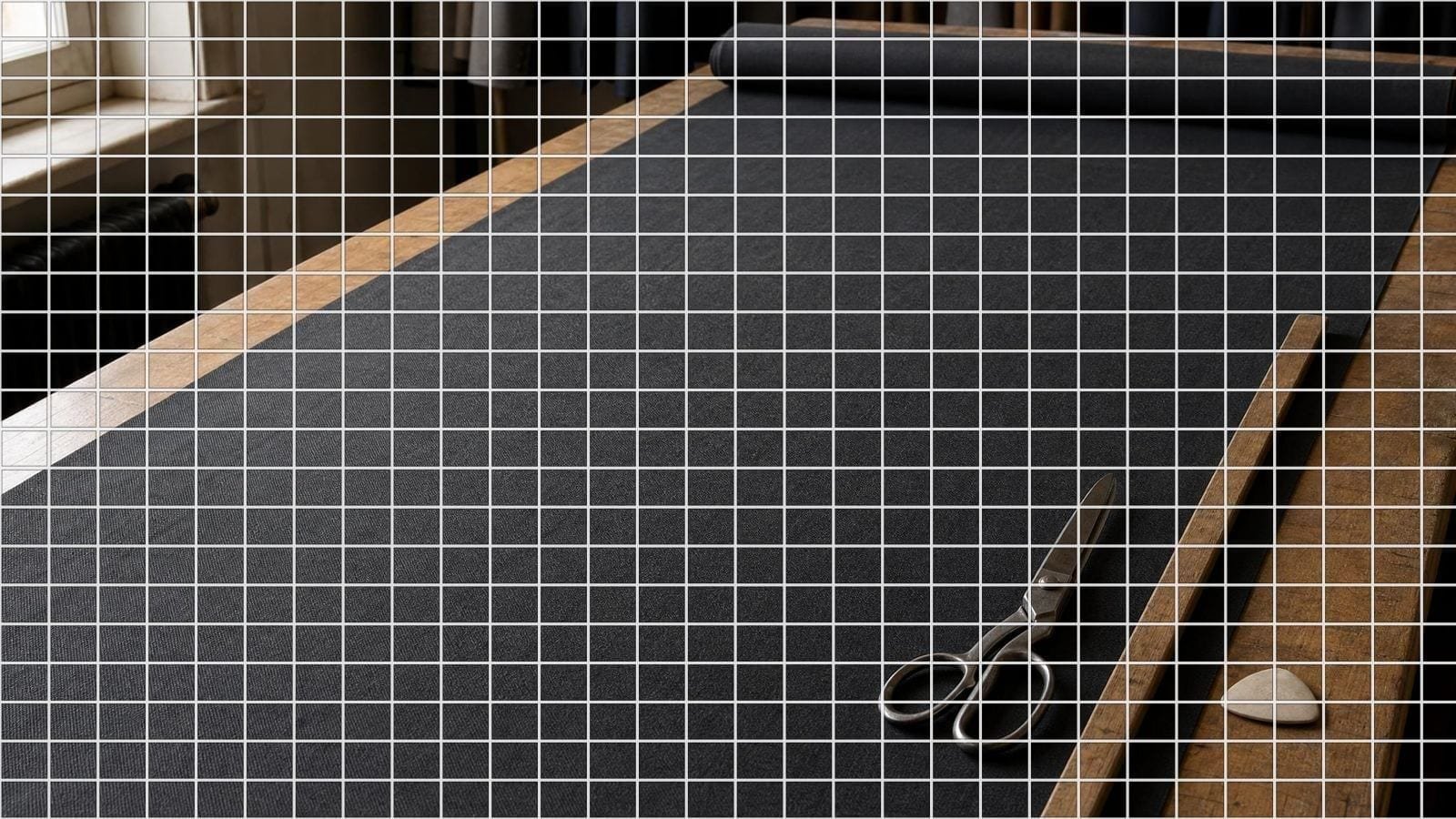

For technical and craft work, the grid does what squared paper has always done, with the addition that the spacing is not fixed by the pad. Circuit layout, marquetry, tiling, model making, pattern drafting — all of them want a specific unit rather than whatever the stationer stocked.

The fine end of the range, down to 0.1 units, is finer than any consumer print process resolves, and is there for on-screen and vector work rather than for paper. At 0.1 mm the lines are closer together than a laser printer's dot spacing.

The coarse end, up to 100 units, covers architectural and site work where a 100 mm or even a 100 cm grid is the useful increment. Between the two, most measured drawing fits.

One thing this grid is not is a proportional system — the rectangular transfer grid divides a frame into fractions instead, and the printable graph paper tool prints the same units on a blank sheet. It will not tell you whether something is at the golden section or on the thirds, because it does not know how big the frame is in its own terms. If the question is about relationships rather than magnitudes, one of the proportional overlays is the right tool.

It also is not a substitute for dimensioning. A measuring grid lets a reader work out a dimension; a dimension line states it. For anything that will be manufactured, state it — the grid is for reading and checking, not for specifying.

The grid draws over your own image rather than exporting a fixed template because the interesting question is nearly always about something specific. A blank ruled sheet is graph paper, and graph paper is available in shops.

The export sizes itself from the paper format and the DPI you choose rather than from your screen, which is what makes a stated spacing meaningful — 10 mm here prints as 10 mm there. SVG preserves both line weights and keeps the labels as text.

Everything runs in your browser. Images you load are never uploaded, because there is no server for them to reach. The drawing, the transform and the export all happen on your own machine.
