Free Reciprocal Diagonal Grid Generator

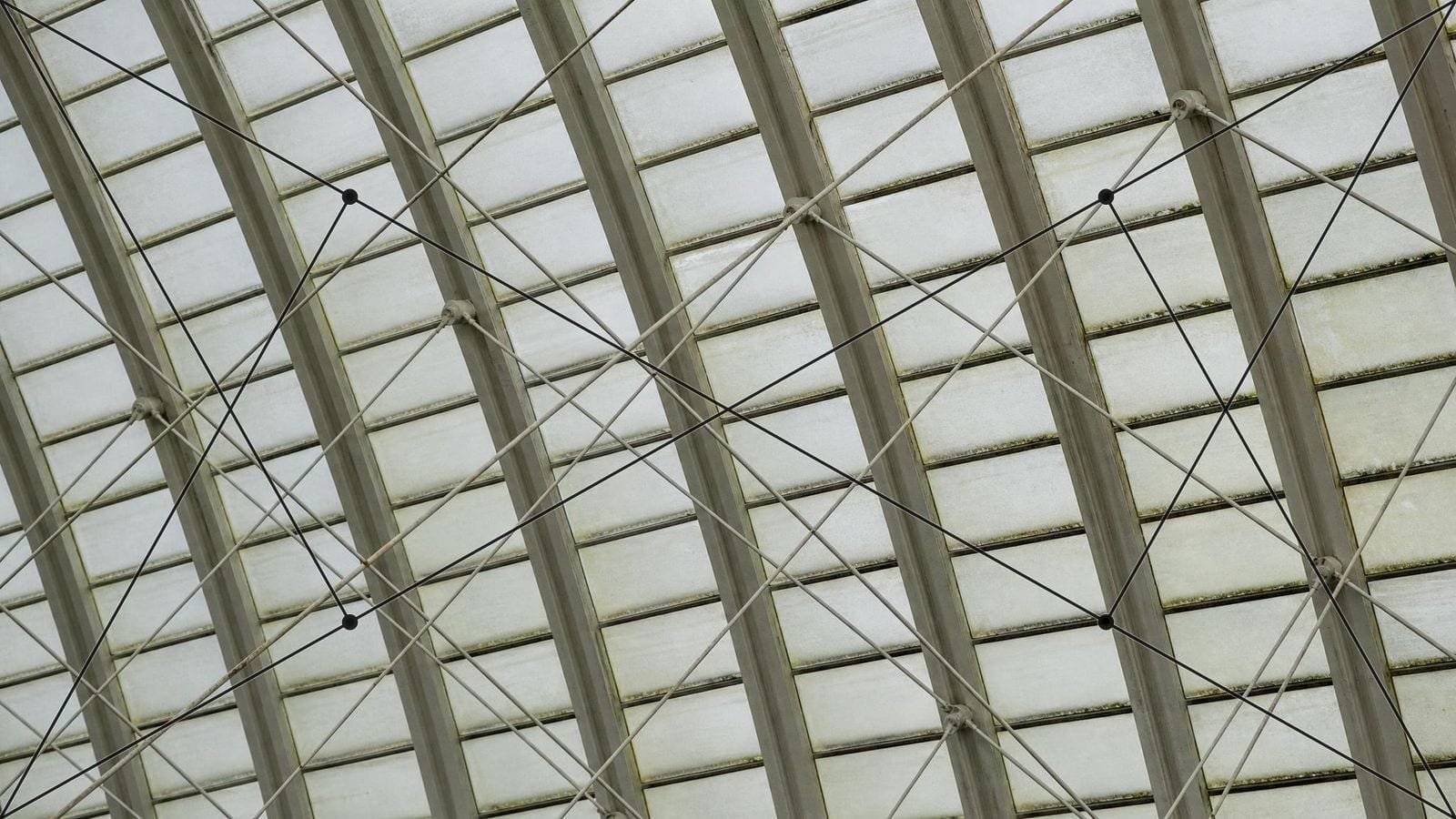

The perpendicular has a name of its own — the reciprocal — because of a property that is easier to state than to see. The line from a corner to the diagonal, extended into the frame, cuts off a rectangle that has the same proportions as the original, rotated. It is the frame's own shape reappearing inside itself.

That self-similarity is what interested Hambidge, whose Dynamic Symmetry: The Greek Vase appeared in 1920 and whose ideas dominated American composition teaching for a generation. His claim was that rectangles which reproduce themselves under this operation are the ones the Greeks used, and that this is why Greek design looks the way it does.

The historical claim is contested and probably overstated. The measurements Hambidge took from Greek vases have been re-examined, and the fit is looser than he presented it. The geometry, however, is exact, and the eyes are real points whether or not anyone in Athens used them.

Where they land is worth computing rather than eyeballing, because the answer is unexpectedly clean. Write r for the frame's aspect ratio — width divided by height. Then the eyes sit at 1/(r²+1) and r²/(r²+1) along each side.

On a 3:2 frame, r = 1.5, so r² = 2.25 and the eyes fall at 1/3.25 and 2.25/3.25. As fractions that is 4/13 and 9/13, or 0.3077 and 0.6923.

That number, four thirteenths, is the same one the dynamic-symmetry 3:2 rectangle produces from an entirely different route — the reciprocal subdivision of the frame. Two constructions, one answer, which is a reasonable indication that the underlying structure is genuine rather than an artefact of either method.

On a square, r = 1, so both fractions are 1/2 and all four eyes collapse onto the centre. That is not a failure of the drawing — it is the construction reporting that a square has no reciprocal structure, because its diagonals are already perpendicular to each other and there is nothing left to drop.

The practical difference between these eyes and a thirds grid is what they are for. A thirds intersection is a placement target: put the subject there. An eye is a point the frame's own geometry converges on, which makes it useful for the thing you most want the viewer to find rather than for the subject as a whole.

In portrait work that distinction matters. The subject's head might sit anywhere; the eye you want the viewer to meet is a single point, and putting it on a reciprocal eye is a much more precise instruction than putting the head in a third.

The dashed guides address the other half of the problem. Four points tell you where to put something small. Four points extended into verticals and horizontals tell you where to put an edge — a horizon, a wall, the boundary between two areas of tone — and those are usually the larger compositional decisions.

Turning the diagonals off once the eyes are established is worth doing. The diagonals are the strongest lines in the construction and they dominate a picture visually, which is fine while you are setting up and unhelpful while you are judging.

The reciprocals can be turned off too, leaving only the four marked points. That is the minimal useful state of this overlay, and for most photographic work it is the one to work in.

A note on where the reciprocal armature differs from the fourteen-line construction the armature grid generator draws, which people confuse it with. The fourteen-line version adds half-diagonals and midpoint lines and produces a much denser field of crossings. This one produces four points, and the sparseness is the feature: four candidates rather than thirty.

Hambidge's own use was analytical rather than generative. He drew the armature over photographs of existing objects and looked for coincidences. That is a method with a well-known weakness — a dense enough armature will coincide with something in any picture — which is another argument for keeping this construction to its four points.

For design work — and the phi rectangle tool applies the same operation to one specific proportion — the eyes are useful as the anchor for a single dominant element on an otherwise open field: a logo on a poster, a headline's first word, the focal object in a product shot. In each case there is one thing whose position matters more than everything else's.

The most productive way to use the overlay is to crop and watch. Load a photograph, note where the eyes sit, then change the aspect ratio and watch them move. Because they are computed rather than imposed, seeing them shift is the fastest way to understand that a crop is a compositional decision and not just a framing one.

The reciprocal lines overlay page sets out Hambidge's argument in full, beside the rest of the advanced composition category. The construction draws over your own image rather than exporting a fixed template because a fixed template would only be correct for one aspect ratio. The eyes belong to the frame, and a different frame has different ones.

The export sizes itself from the paper format and the DPI you choose rather than from your screen. SVG keeps every line and every eye editable, which is what you want when the armature is a construction layer under a drawing.

Everything runs in your browser. Images you load are never uploaded, because there is no server for them to reach. The drawing, the transform and the export all happen on your own machine.
