φ is defined as (1 + √5) ÷ 2, which rearranges to √5 = 2φ − 1. And since 1/φ is φ − 1 — the golden ratio's other defining oddity, that its reciprocal is itself minus one — the two strips of 1/φ plus the square of 1 come to 2(φ − 1) + 1 = 2φ − 1 = √5.

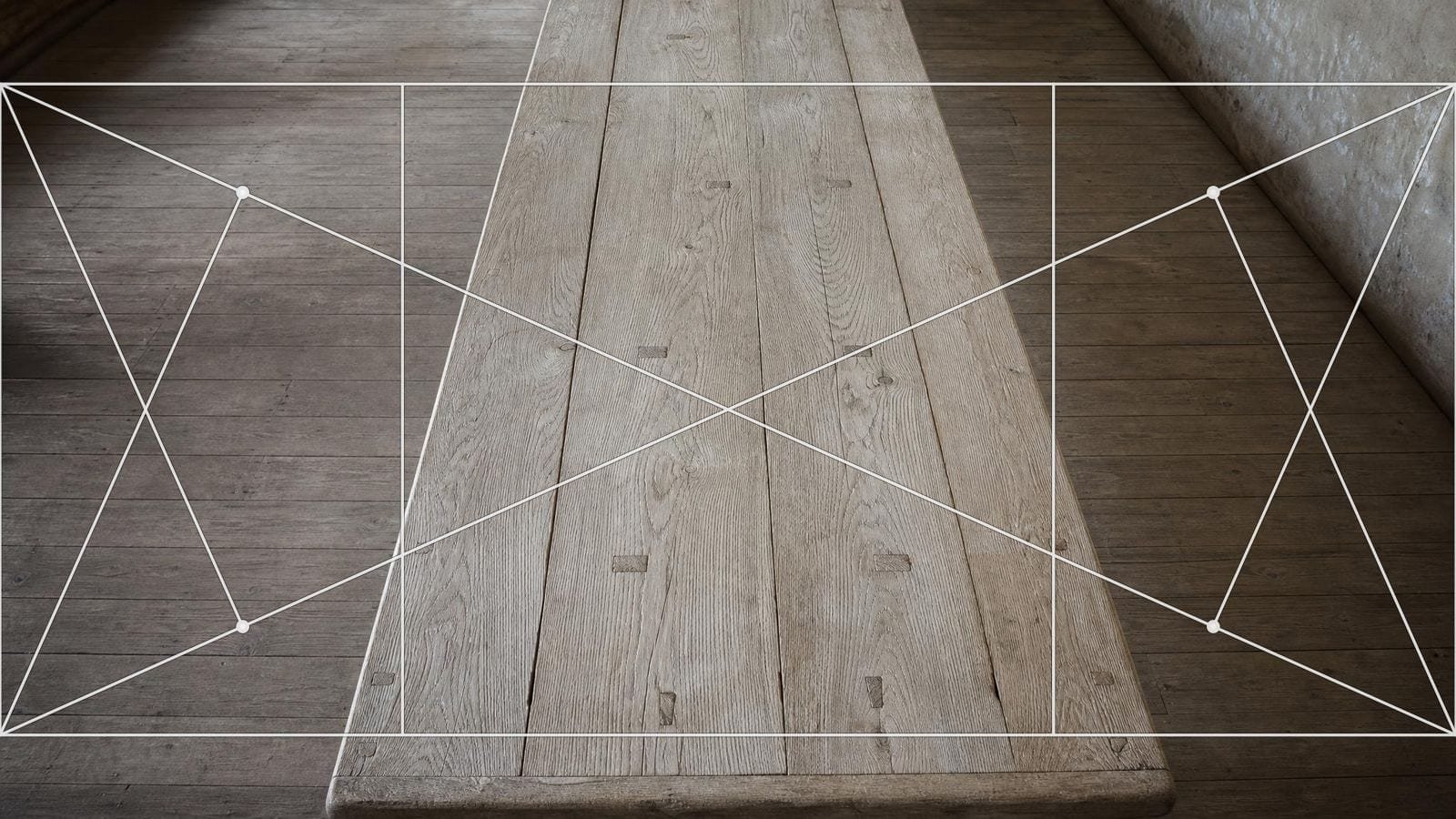

Both diagonals, four reciprocals, four eyes — at exactly one sixth of the width and one sixth of the height, since r² is exactly 5. That is the furthest out of any common rectangle: root 2 gives thirds, root 3 quarters, root 4 fifths, and root 5 sixths.

In practice that produces a very particular kind of composition. Placements sit close to the ends of a long rectangle, leaving a large open middle, and the diagonals connecting them travel a long way. It reads as stretch and distance — appropriate for landscape, for processional subjects, for anything about traversal, and quite wrong for an intimate subject that wants the frame to close around it.

Panoramic formats are the obvious case. 1 : 2.236 sits close to several standard panoramic crops and is a natural choice when a scene has to read as wide. It also turns up in friezes, predella panels and any horizontal band running under or above a main field, where the length is set by the architecture rather than chosen.

It is also, less obviously, the proportion of a pair of golden rectangles sharing their short side — take two φ rectangles, put them back to back, and the result is root 5. That construction is worth knowing if you are laying out a symmetrical spread on golden proportions, because the outer boundary lands here.

The root 5 overlay page works through the subdivision, beside the rest of the root rectangle overlays. As with the rest of the family, root 5 as a compositional system comes from Jay Hambidge's The Elements of Dynamic Symmetry (1920). Root 5 in particular carried a lot of his argument, because its relationship to φ let him connect the root series to the golden section and thence to the classical proportions he was claiming.

The archaeology stayed contested. The geometry did not — √5's relationship to φ is arithmetic and not in dispute, and the compositional method works whether or not Greek vase painters used it. Take the construction; leave the history as an open question, which is what it is.

Do not fight the letterbox. On a 3:2 photograph a fitted root 5 rectangle occupies a band about two thirds of the frame height, and composing on its armature means accepting that the top and bottom of your picture are outside the system. Either crop to the proportion or use a shorter rectangle.

The central square is often the more useful half of the overlay. Turn the reciprocals off and keep the subdivision, and you have a square field with a defined margin on each side — which is exactly the structure a centred subject with symmetrical breathing space needs, and it is set by proportion rather than by taste.

And if you are using the rectangle to teach or demonstrate φ, show it with the subdivision on and the eyes off. The four eyes at sixths are a separate idea and they distract from the one thing this figure explains better than anything else in the catalogue.

There is a second reading of the same subdivision worth having. Instead of seeing a square between two strips, take the central square together with the strip on its left: that is a golden rectangle. Take it with the strip on its right instead and you have another. The root 5 rectangle is two golden rectangles overlapping in a shared square.

Which gives you a genuinely useful layout move. A root 5 field can carry two golden compositions that share their central square — a left-weighted reading and a right-weighted one occupying the same surface, related by proportion rather than by symmetry. On a diptych or a spread that is exactly the structure you want when the two halves have to relate without mirroring.

The golden rectangle generator draws one of those golden rectangles alone, and the golden ratio tool the grid that comes out of the same ratio. It also explains why root 5 turns up wherever golden-ratio work has to be doubled. Two φ rectangles sharing their short side make root 5; two φ rectangles sharing their central square also make root 5. Whichever way you assemble the pair, the outer boundary lands on the same proportion.

A last practical note: because the two golden strips are the outer fifth or so of the rectangle at each end, they are exactly where a long frame is most likely to be trimmed. If the proportion matters to the finished piece, allow for the trim before setting out rather than discovering afterwards that the strips are gone and the surviving field is a square.
