The social media safe-area grid

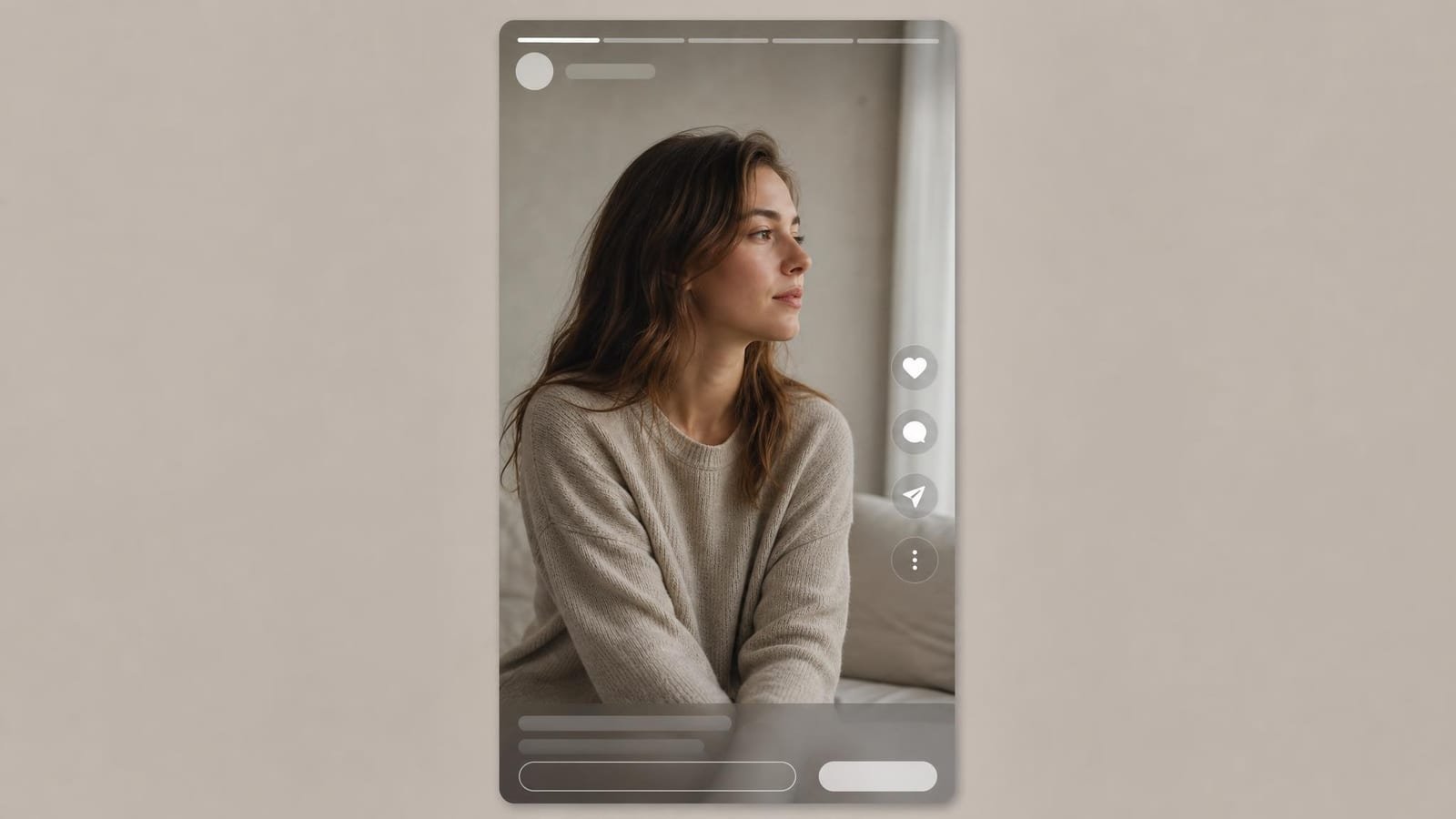

What the overlay shows

The overlay draws three things at once. First, the outer frame at the chosen platform aspect ratio — 9:16 for a story or Reel, 1:1 or 4:5 for a feed post, 16:9 for a thumbnail. Second, the shaded bands where the platform's own interface sits: a status band across the top for the profile bubble, handle, and clock; a rail down one side for the like, comment, share, and save buttons; and a deeper band across the bottom for the caption, the progress bar, and the call to action. Third, the central safe zone — the rectangle those bands never reach, where a headline, a face, or a logo stays fully visible.

It is not a composition guide. It tells you where not to put critical content, not where the focal point should fall. As an overlay it is a checking tool: you slide it over a draft and look for the headline drifting under the caption band or a subject's eyes clipped by the status bar. Grid Maker Pro lets you switch the aspect ratio and the placement, so the bands match a specific surface — a story versus a feed post versus an in-feed ad — rather than a single generic template.

One refinement matters in practice: the bands are positioned as proportions of the frame, not as fixed pixel offsets, because platforms redraw their interfaces often while the proportional position of the chrome stays roughly stable. A 9:16 vertical story exported at 1080x1920 and a Reel or TikTok at the same size share the same proportional safe zone, so a percentage inset reads correctly whatever the pixel dimensions. Set the placement and the overlay scales the safe zone to the frame, so the template survives the next interface tweak instead of ageing the day a platform shifts its caption band by twenty pixels.

Because the check runs as a browser overlay rather than an upload, the reference image never leaves your device — there is no server to send it to. You drop a draft, slide the safe zone over it, and read the result locally, which keeps unreleased campaign art and client work off third-party servers while you confirm the crop.

The math, briefly

The core problem is cross-cropping: one master asset re-framed to several ratios, where the safe content must survive every crop. The safe zone is a percentage inset of the frame rather than a pixel box:

action-safe ≈ 90% of frame · title-safe ≈ 80% of frame
safe zone = largest rectangle common to 9:16 · 1:1 · 4:5 · 16:9
keep key content inside title-safe, clear of the UI bands

The heritage is broadcast. Analog television overscanned, so SMPTE RP 218 defined an action-safe area at roughly ninety per cent of the frame and a title-safe area at roughly eighty per cent, the inner zone where text was guaranteed to survive the cut.¹ Social platforms inherited the same logic: the action-safe band corresponds to the platform chrome, and the title-safe rectangle is where a headline is safe. The reason to express all of this as percentages rather than pixels is that the platform specs change constantly — what stays stable is the proportional position of the bands, not their exact dimensions.²³ When one master feeds many ratios, the practical safe zone is the rectangle common to all of them, and the arithmetic is simply finding that intersection.⁴

History — where it comes from

Verified

Broadcast overscan and title-safe. The safe area is a television invention. Cathode-ray picture tubes overscanned the image, cropping its edges by an amount that varied from set to set, so broadcasters could not trust the outer frame. The industry response was codified by the Society of Motion Picture and Television Engineers in RP 218, which defines an action-safe area at about ninety per cent of the frame and a title-safe area at about eighty per cent, inside which text was guaranteed to display.¹

Migration to social platforms. When mobile apps began overlaying their own interface on full-bleed user media — a vertical video with the handle, buttons, and caption drawn on top rather than baked into the asset — the safe-area idea moved straight across. Platforms now publish their own safe-zone guidance: Meta documents creative safe zones for Instagram and Facebook placements,² TikTok publishes safe zones for its vertical video,³ and YouTube documents safe-area and dimension guidance for thumbnails.⁴

Designing to the medium. The deeper principle is older than any platform: Marshall McLuhan argued that the form of a medium shapes the message it carries more than the content does.⁵ Designing to each platform's chrome — rather than pouring one fixed asset into every surface — is that idea made practical, and it sits within the broader grid tradition that Müller-Brockmann, Elam, and Samara document as a discipline of organising a frame.⁶⁷⁸

Honest caveats

Any fixed template ages. Platform specifications change constantly, often without announcement, as interfaces are redesigned and new ad formats ship. A safe-area grid is a current best guess to verify against the live platform docs, not a permanent truth.²

Safe zones differ per placement. A feed post, a story, and an in-feed ad on the same platform carry different chrome, so their safe zones differ. Setting the overlay to the platform but not the specific placement is a common way to get it subtly wrong.

The safe zone is a constraint, not a composition. It says where the interface will be; it says nothing about where the focal point should sit. A face inside the safe zone but dead-centre and lifeless is still a weak frame. Samara's account of the grid as a servant to be used and broken applies here too.⁸
