2-Point Perspective
The canonical architectural perspective. Two vanishing points on the horizon line, vertical lines staying vertical — the geometry that draws every corner-view of a building, every cube seen on the bias, every interior at three-quarter angle. Developed by Brunelleschi around 1415, codified mathematically by Alberti in 1435 and Piero della Francesca around 1474, formalised for drawing instruction by Brook Taylor in 1715. The single most useful perspective system for working architectural illustrators, urban sketchers, and concept artists drawing built environments.
- First codified
- 1435 (Alberti, De pictura)
- Mathematical proof
- c. 1474 (Piero)
- Vanishing points
- 2 (both on horizon)
- Difficulty
- Beginner
- Verticals
- Stay vertical (no convergence)
- Also known as
- Angular perspective, 2VP
See the 2-point grid on five architectural subjects
‹›

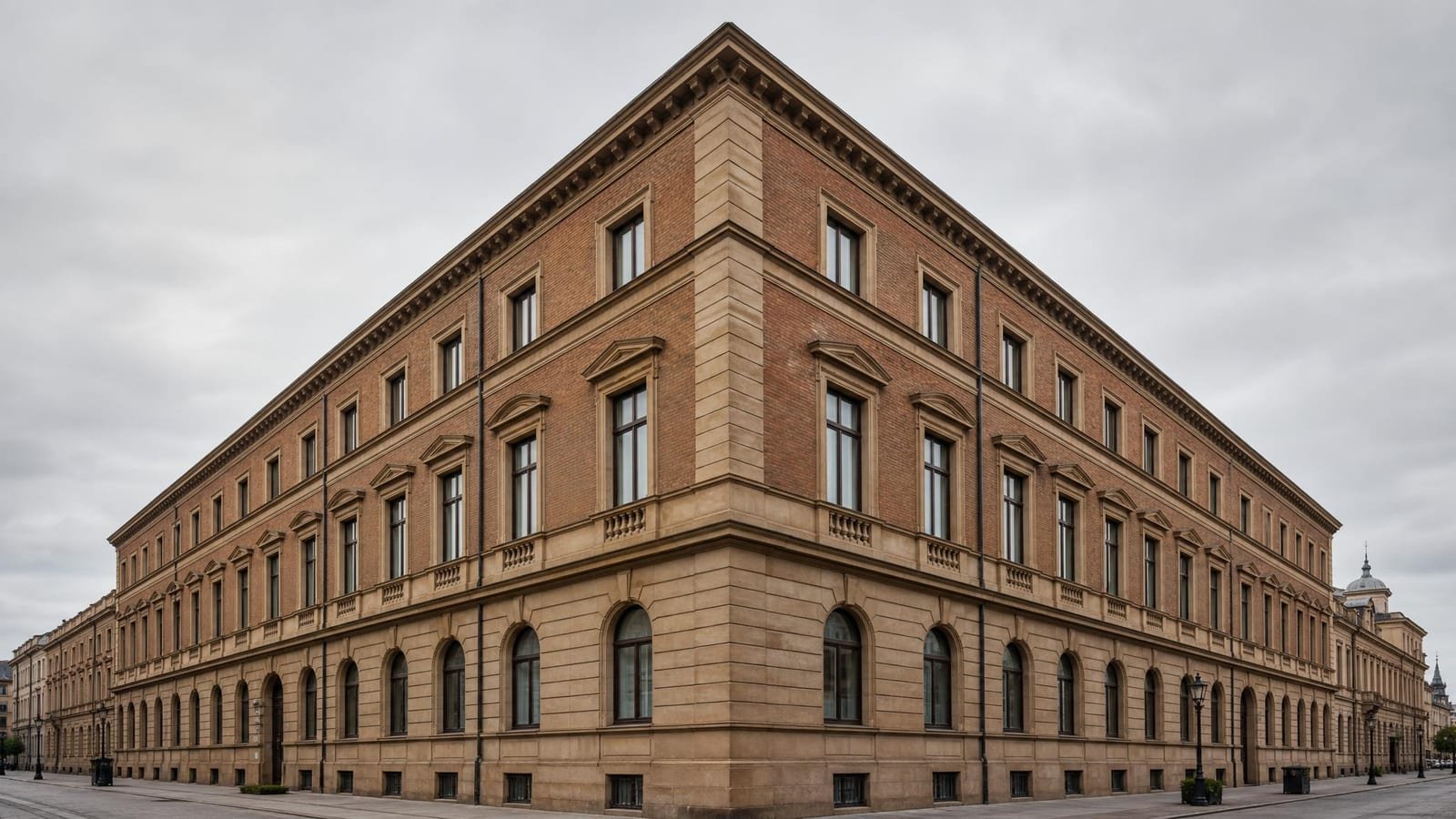

On a building exterior, two vanishing points sit far off the picture on the horizon line. The leading vertical (closest corner of the building) stays true vertical; all horizontals converge to one of the two vanishing points. Window edges, roof lines, and ground-plane edges all project to these same two points.
What the overlay shows
The two point perspective overlay draws three primary elements: a horizon line representing the viewer's eye level; two vanishing points on that horizon line, typically placed far apart on either side of the scene; and a network of straight projection lines radiating from each vanishing point. Vertical lines remain true vertical — the defining feature of two point geometry, where buildings at an angle (corner-on view) present the nearest leading edge as a single true-vertical corner. Optional sub-projections show how to subdivide receding planes using the diagonal method.
The overlay is parameterised by horizon position and vanishing-point spacing. The horizon's vertical position on the canvas determines viewer eye level — high horizon for a low viewpoint (looking up at a building), low horizon for a high viewpoint (looking down from a roof terrace). Vanishing-point spacing determines how dramatic the perspective convergence reads — narrow spacing for cramped or distorted-looking scenes, wide spacing for naturalistic architectural illustration.
The geometry
2-point perspective is the projection of three-dimensional space onto a vertical picture plane where two of the three orthogonal axes (typically the two horizontal ground-plane axes) are not parallel to the picture plane. The mathematics:
picture plane vertical, parallel to viewer's eyes
vertical axis parallel to picture plane → verticals stay vertical
two ground-plane axes oblique to picture plane → both converge
convergence point of each axis = its vanishing point
both vanishing points sit on the horizon line
This was first proven mathematically by Piero della Francesca in De Prospectiva Pingendi (c. 1474), the second great Renaissance treatise on perspective.2 Piero established that all lines parallel to a given direction in three-dimensional space converge to the same point in their picture-plane projection — the fundamental theorem of linear perspective. Brook Taylor's Linear Perspective (1715) extended Piero's work into a complete general theory and introduced the measuring-point method that makes depth quantifiable within the perspective.3
History — from Brunelleschi to construction manuals
Verified history (with primary sources)
c. 1413–1425 — Brunelleschi's experiments. Filippo Brunelleschi conducts the famous perspective demonstrations in front of the Florence Baptistery, using polished panels and pinhole sighting to verify mathematical perspective.1 The demonstrations themselves are lost; their description survives in Antonio Manetti's biography of Brunelleschi written about 1480.
1435 — Alberti. Leon Battista Alberti publishes De pictura (Latin) and the following year Della pittura (Italian), the first systematic treatment of linear perspective for painters.4 Alberti credits Brunelleschi as the originator. He works out the construction (later called the costruzione legittima) but does not yet make the formal distinction between one and two vanishing-point cases.
c. 1474 — Piero della Francesca. Piero completes De Prospectiva Pingendi, the first complete mathematical theory of linear perspective.2 The treatise covers two-vanishing-point construction explicitly as a special case of the general theory.
1525 — Dürer. Albrecht Dürer publishes Underweysung der Messung ("Instruction in Measurement"), the first vernacular German perspective treatise, which spreads the methods northward.5 Dürer's woodcut of the artist drawing through a gridded picture-plane window remains the canonical illustration of Renaissance perspective practice.
1715 — Brook Taylor. Brook Taylor's Linear Perspective: Or, A New Method of Representing Justly all Manner of Objects as they appear to the Eye in all Situations (London) is the first complete English-language theoretical treatment.3 Taylor introduces the measuring-point method that makes accurate depth measurement possible in 2-point perspective. The book is the foundation of the British architectural-drawing tradition.
19th century — naming. The "one-point / two-point / three-point" taxonomy emerges in nineteenth-century architectural and engineering drawing manuals, particularly in the British and American tradition. Renaissance artists themselves did not use this taxonomy; they treated perspective as a continuum.
1927 — Panofsky. Erwin Panofsky publishes Perspektive als symbolische Form ("Perspective as Symbolic Form"), the seminal twentieth-century scholarly treatment of the cultural and philosophical significance of Renaissance perspective.6 The English translation by Christopher Wood (1991) made the work widely accessible.
Unverified claims that won't die
"Brunelleschi invented perspective." Brunelleschi demonstrated linear perspective with the mathematical precision that became the Renaissance standard. He did not invent the idea of converging parallel lines — that has antecedents in Roman wall painting (Pompeii first century BCE) and in Hellenistic stage-scene painting. What Brunelleschi contributed was the mathematical formalism. The earlier traditions used perspective intuitively without mathematical proof.
"Two-point and three-point perspective are different systems." They are the same system with the third vanishing point at infinity in 2-point or at finite distance in 3-point. The "different systems" framing is a pedagogical simplification of nineteenth-century drawing manuals; the underlying geometry is continuous.
When to use it (and when not)
| If you want to... | Use 2-point | Don't use it for... | Difficulty |
|---|---|---|---|
| Draw a building seen at an angle (two faces visible) | The canonical use case — corner-on architectural illustration | Buildings facing the viewer directly (use 1-point) | Beginner |
| Draw an interior at three-quarter angle | Two-wall views read as immediate and dynamic; eye is drawn into the corner | Symmetrical hallway / corridor views (use 1-point) | Beginner |
| Urban sketching at street level | Cityscapes naturally fall into 2-point — buildings to either side of the street | Looking straight up at a skyscraper (use 3-point) | Intermediate |
| Draw a cube or box on the bias | Single object on a turntable; cleanest expression of 2-point geometry | Multiple objects at different orientations (each needs its own VP pair) | Beginner |
| Architectural reference drawings | Building permits and presentation drawings traditionally use 2-point with off-page VPs | Plan drawings and elevations (use orthographic, no perspective) | Intermediate |
Famous applications
Six historical works and contemporary uses of 2-point perspective.
Modern architectural rendering practice
Hand-drawn perspective renderings remain part of major architectural practice for client presentations. 2-point at off-page vanishing points is the standard convention for building exteriors at street-eye view.
Hugh Ferriss — Metropolis renderings (1920s)
Ferriss's charcoal renderings of imagined New York skyscrapers are the canonical commercial-art use of 2-point perspective, demonstrating how off-page vanishing points produce naturalistic monumentality.
Urban Sketchers movement (2007–present)
The largest contemporary practitioner community for 2-point perspective. Daily urban sketching practice has reintroduced 2-point as a working artistic technique to a generation that learned to draw in art schools that had stopped teaching perspective.
Concept-art game environments
2-point perspective dominates game-environment concept art. Published art-of books from The Last of Us, Genshin Impact, League of Legends, and most major AAA franchises show 2-point construction lines visible in early concept passes.
M.C. Escher — geometric prints (1930s–1960s)
Escher's interior staircase prints use rigorous 2-point construction as the foundation for the impossible-architecture distortions on top. Without the precise 2-point underpinning, the "impossible" transformations would not read as impossible.
Common mistakes
1
Vanishing points too close together
The most common amateur error. Both vanishing points placed inside the picture frame, or just outside its edges, produce excessive convergence — the funhouse-mirror distortion that marks unschooled perspective drawing. Real architecture seen at a naturalistic distance has vanishing points far off the page.
Fix: push vanishing points six to ten frame-widths off the page in either direction. Working architectural illustrators anchor pins to the table outside the drawing board to mark off-page VP positions.
2
Converging verticals in a 2-point scene
The defining feature of 2-point perspective is that vertical lines stay vertical. Beginners sometimes add slight upward or downward convergence to vertical edges, thinking it adds realism. It does not — it produces 3-point geometry that conflicts with the 2-point projection of the horizontals. The result reads as wonky.
Fix: use a straight-edge or ruler for verticals. If you want vertical convergence, switch to 3-point perspective for the entire drawing rather than mixing systems.
3
Horizon line above or below the actual eye level
The horizon line corresponds to the viewer's eye level — full stop. Beginners sometimes place the horizon arbitrarily because it "looks better composed there." The result is a scene where everything else (figures, doorways, ground markers) reads inconsistently relative to the false eye level.
Fix: decide the viewer's vantage first. Standing? Eye level ~165 cm above ground. Sitting? ~125 cm. Looking down from a balcony? Above the building's roof line. Place the horizon at the corresponding height on your canvas.
4
Using 2-point when 1-point would suit better
Symmetrical interiors, hallways, formal building facades — all situations where 1-point produces a more naturally composed image than 2-point. Beginners use 2-point reflexively because it feels more "dynamic," even when the subject calls for 1-point's symmetry.
Fix: if the dominant axis of the scene faces the viewer, use 1-point. If it's at an angle (showing two faces of a building or two walls of an interior), use 2-point. The choice is dictated by subject, not by preference.
How different disciplines use it
For illustrators
Editorial and book illustrators use 2-point for any scene set in built environments — newspaper architectural reportage, children's-book interior scenes, magazine cityscape illustrations. The overlay's two-vanishing-point grid is built directly into the urban-sketching workflow.
For photographers
Architectural photographers shoot 2-point geometry deliberately, using tilt-shift lenses or perspective-correction tilt mechanisms that keep verticals vertical regardless of camera body angle. The shift mechanism is the optical equivalent of the artist's deliberate choice to hold the picture plane parallel to building facades.
For concept artists
2-point dominates environment concept art for film, animation, and games. The published art-of books from major studios consistently show 2-point construction lines visible in early concept passes. The wide-VP variant produces the cinematic feel; tight-VP produces the cramped, anxious feel often used in horror or noir environments.
For architects
Hand-drawn perspective rendering is still part of major architectural practice for client presentations and building permits. SOM, Foster + Partners, Renzo Piano, and other major studios maintain in-house renderers who use 2-point at off-page vanishing points as the standard convention for street-level building views.
"Perspective is the rein and rudder of painting. Without it you cannot trust the structure of any picture; with it, the picture organises itself around a single coherent point of view that the viewer's eye can navigate. The two-vanishing-point case is where most architectural drawing actually lives."
Leonardo da Vinci, Codex Urbinas Latinus §49, c. 1490, ed. Richter (1883)7
Frequently asked questions
What is 2-point perspective?
A linear perspective system using two vanishing points on the horizon line, with all vertical lines remaining true vertical. It is the canonical architectural perspective for buildings and interiors viewed at an angle.
Who invented 2-point perspective?
Linear perspective itself was developed by Filippo Brunelleschi around 1413–1425 and codified mathematically by Leon Battista Alberti in De pictura (1435). The one/two/three-point taxonomy emerged in nineteenth-century architectural drawing manuals.
When should I use 2-point instead of 1-point?
Use 2-point when the subject is viewed at an angle (corner-on view, two faces of a building visible). Use 1-point when the subject faces the viewer directly (hallway, street, interior viewed straight-on).
Why do my 2-point drawings look distorted?
Vanishing points placed too close together cause excessive convergence and produce funhouse-mirror distortion. The fix is to push your vanishing points far off the page — often six to ten frame-widths to either side.
Do verticals always stay vertical in 2-point?
Yes, by definition. When the line of sight tilts up or down, verticals start to converge and you have entered 3-point perspective.
What is the picture plane?
The imagined flat surface on which the perspective scene is projected — the plane of the canvas or page. In 2-point perspective the picture plane is held vertical so that no architectural face is parallel to it.
How do photographers use 2-point perspective?
Architectural photographers use tilt-shift lenses that maintain 2-point geometry by keeping verticals vertical even when the camera body is tilted to compose. The shift mechanism is the optical equivalent of the artist's deliberate picture-plane choice.
How do I measure depth in 2-point perspective?
Using the diagonal method or the measuring-point method documented in Brook Taylor's Linear Perspective (1715). The diagonal method projects the diagonal of an in-perspective square to find subsequent depth-marker positions.
How do I draw a building or a box in two point perspective?
Start with the horizon line at eye level and two vanishing points spaced wide apart on it. Draw the nearest corner as a single true vertical — the leading edge. From the top and bottom of that vertical, project lines back to each vanishing point; those projections set the top and bottom edges of the two visible faces. Add the far vertical edges and project them to the opposite vanishing points to close the form. The same four steps draw a box, a cube on the bias, or a building seen corner-on.
Where do I place the vanishing points in two point perspective?
Both vanishing points sit on the horizon line, one to either side of the scene's centre, and as far apart as the page allows — often six to ten frame-widths out, which usually means off-page vanishing points marked outside the drawing board. Wide spacing keeps the geometry naturalistic; placing the two vanishing points close together is the main cause of distortion.
References
- Manetti, A. The Life of Brunelleschi, c. 1480. Modern edition trans. C. Enggass, ed. H. Saalman. Pennsylvania State University Press (1970). Manetti's biography is the primary source for Brunelleschi's perspective demonstrations at the Florence Baptistery.
- della Francesca, P. De Prospectiva Pingendi, c. 1474. Modern critical edition by G. Nicco-Fasola, Le Lettere, Florence (1942/1984). The first complete mathematical theory of linear perspective.
- Taylor, B. Linear Perspective: Or, A New Method of Representing Justly all Manner of Objects as they appear to the Eye in all Situations. R. Knaplock, London (1715). Foundation of the British architectural drawing tradition.
- Alberti, L.B. De pictura / Della pittura, 1435/1436. Modern bilingual edition trans. C. Grayson, Phaidon Press (1972). ISBN 0-7148-1469-2. The first systematic treatment of linear perspective for painters.
- Dürer, A. Underweysung der Messung. Nuremberg (1525). Modern edition: The Painter's Manual, trans. W. Strauss, Abaris Books (1977). ISBN 0-913870-04-3. The first vernacular German perspective treatise.
- Panofsky, E. Perspective as Symbolic Form, 1927. Trans. C. Wood, Zone Books (1991). ISBN 0-942299-52-3. The seminal twentieth-century scholarly treatment.
- da Vinci, L. Treatise on Painting (Codex Urbinas Latinus 1270), c. 1490. Modern editions: ed. A.P. McMahon, Princeton University Press (1956); ed. J.P. Richter (1883/1970). Quotation at §49.
- Veltman, K.H. Linear Perspective and the Visual Dimensions of Science and Art. Deutscher Kunstverlag, Munich (1986). ISBN 3-422-00779-X. Comprehensive scholarly survey of perspective's history and theory.
